12.1 What is a binary search tree?

12.1-1

For the set of $\{ 1, 4, 5, 10, 16, 17, 21 \}$ of keys, draw binary search trees of heights $2$, $3$, $4$, $5$, and $6$.

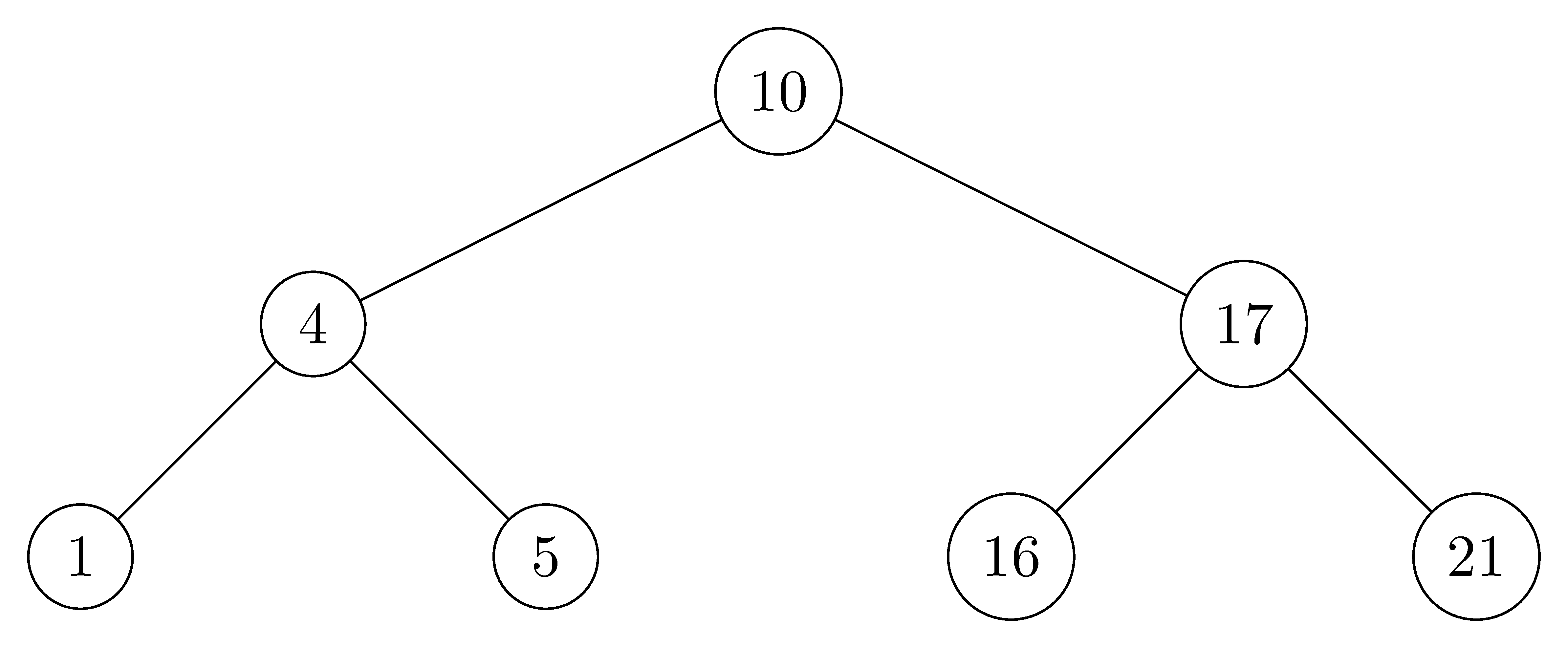

  • $height = 2$:

  • $height = 3$:

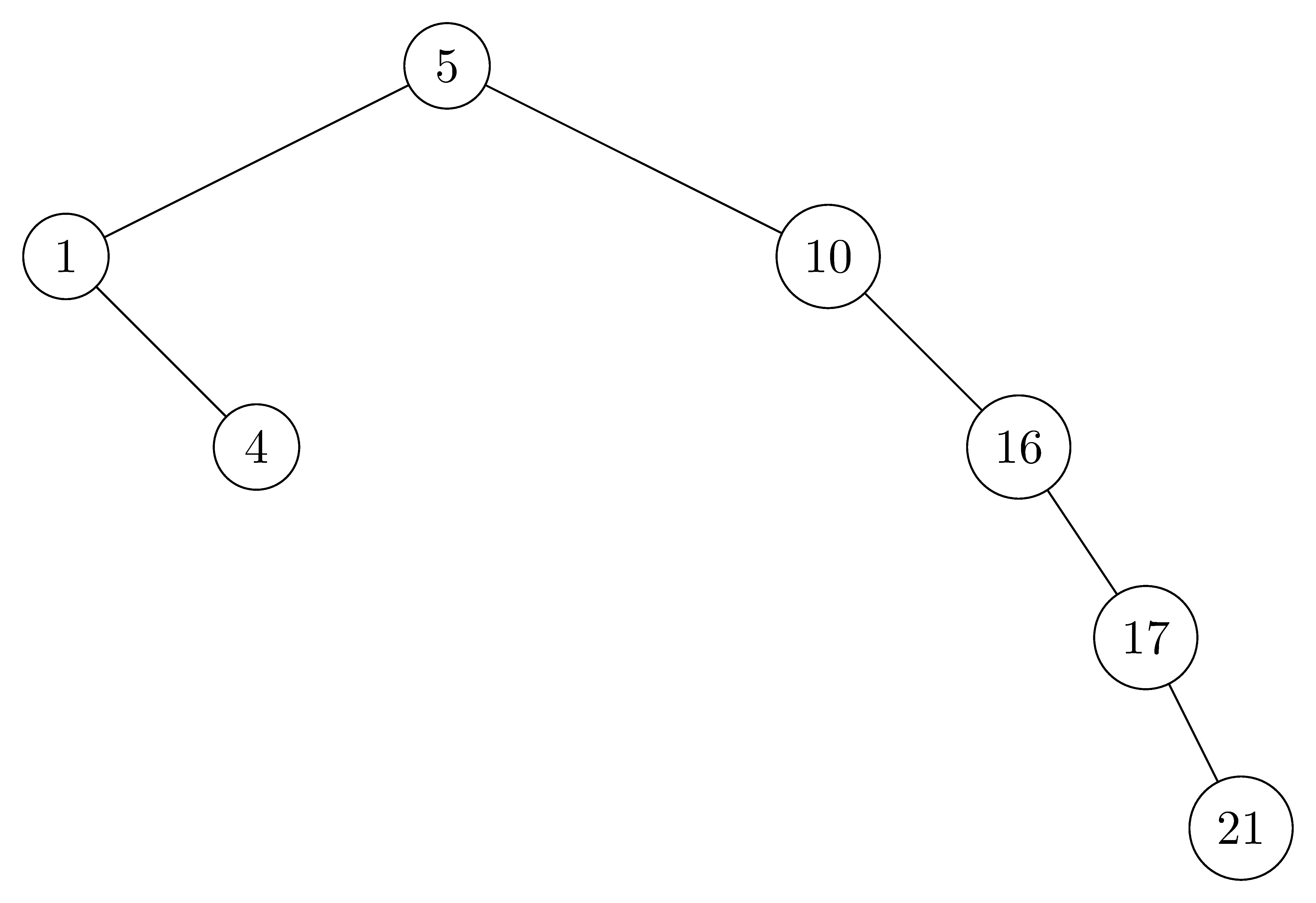

  • $height = 4$:

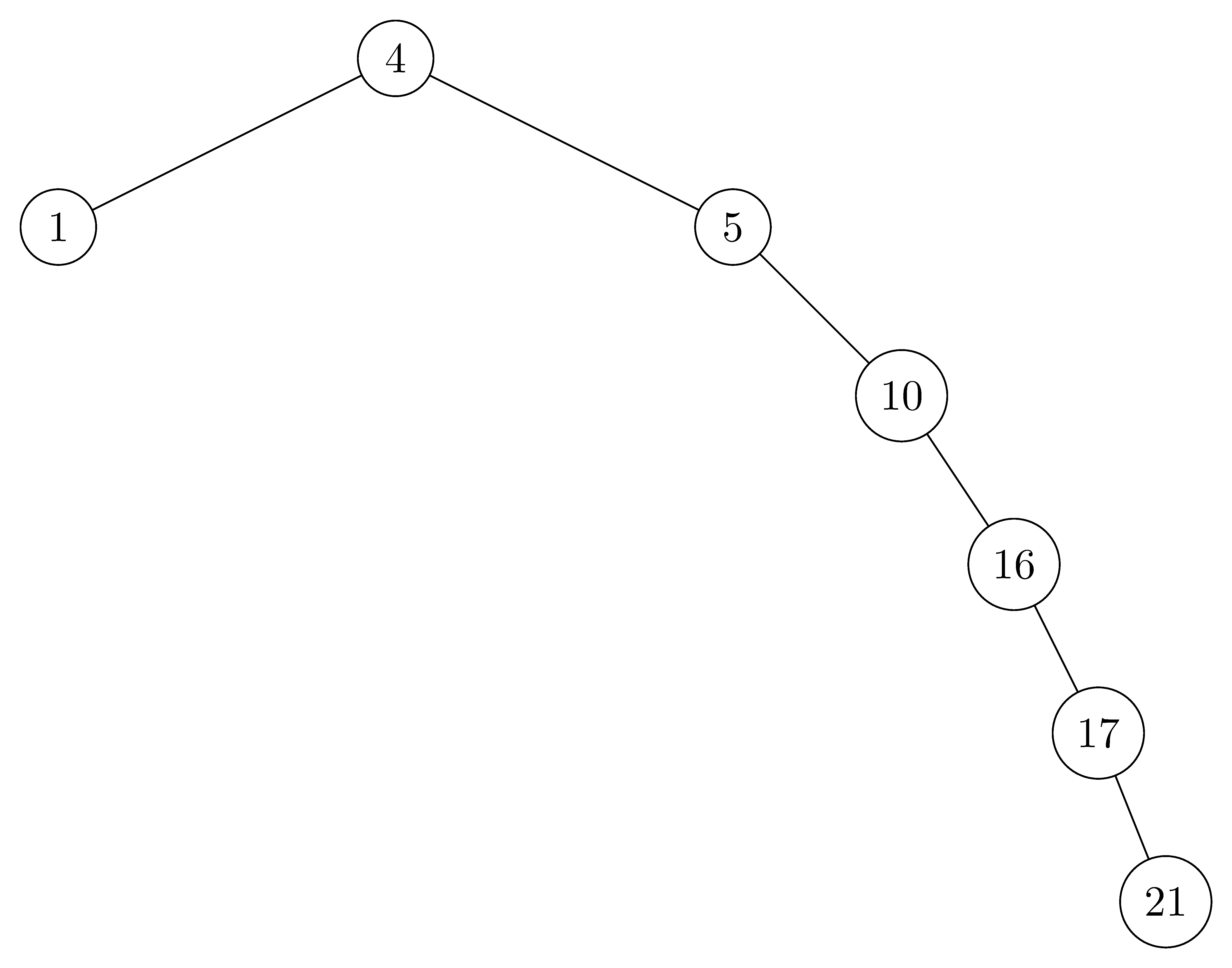

  • $height = 5$:

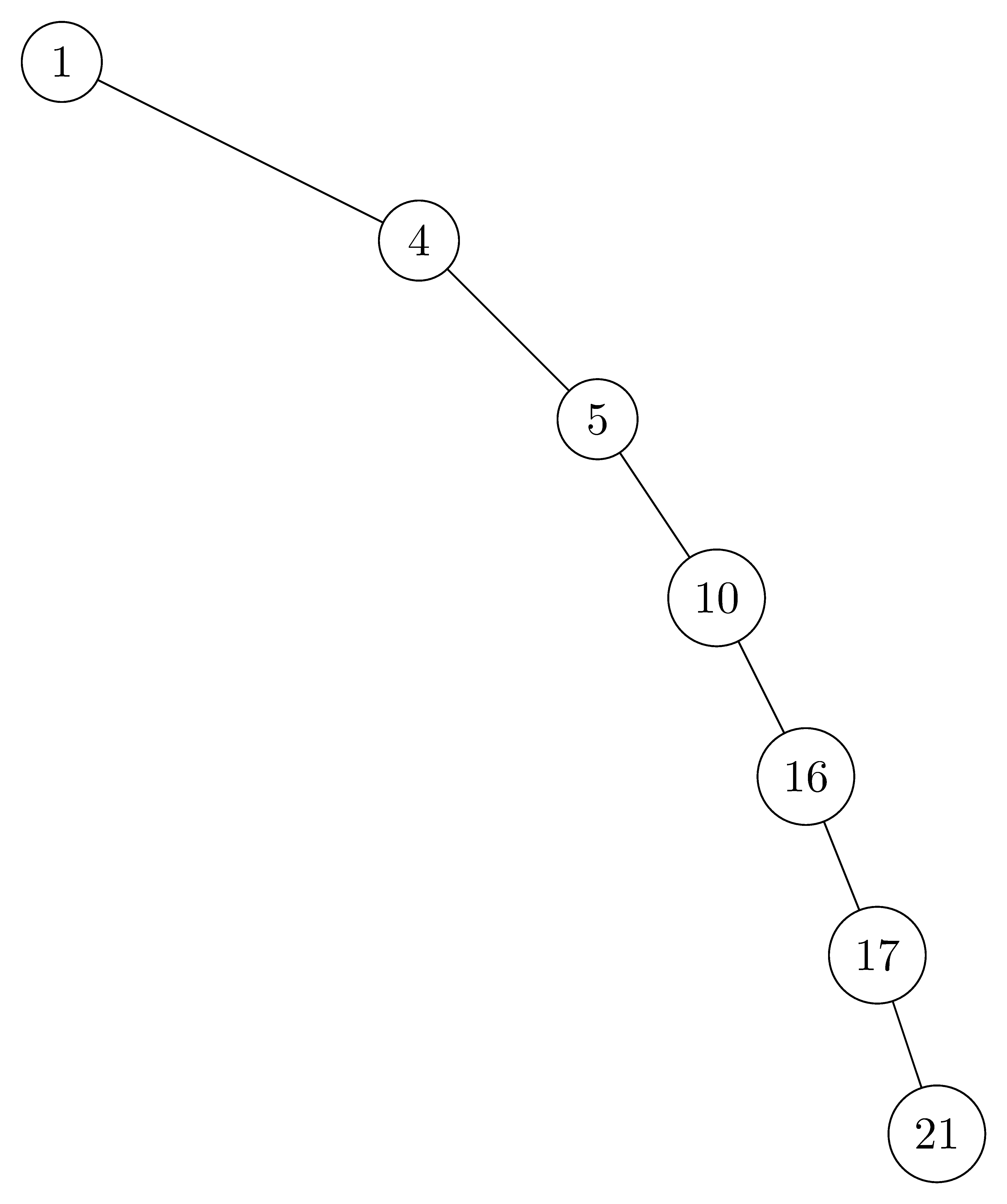

  • $height = 6$:

12.1-2

What is the difference between the binary-search-tree property and the min-heap property (see page 153)? Can the min-heap property be used to print out the keys of an $n$-node tree in sorted order in $O(n)$ time? Show how, or explain why not.

In a heap, a node's key is $\ge$ both of its children's keys. In a binary search tree, a node's key is $\ge$ its left child's key, but $\le$ its right child's key.

The heap property, unlike the binary-searth-tree property, doesn't help print the nodes in sorted order because it doesn't tell which subtree of a node contains the element to print before that node. In a heap, the largest element smaller than the node could be in either subtree.

Note that if the heap property could be used to print the keys in sorted order in $O(n)$ time, we would have an $O(n)$-time algorithm for sorting, because building the heap takes only $O(n)$ time. But we know (Chapter 8) that a comparison sort must take $\Omega(n\lg n)$ time.

12.1-3

Give a nonrecursive algorithm that performs an inorder tree walk. ($\textit{Hint:}$ An easy solution uses a stack as an auxiliary data structure. A more complicated, but elegant, solution uses no stack but assumes that we can test two pointers for equality.)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
INORDER-TREE-WALK(T)
    let S be an empty stack
    current = T.root
    done = 0
    while !done
        if current != NIL
            PUSH(S, current)
            current = current.left
        else
            if !S.EMPTY()
                current = POP(S)
                print current
                current = current.right
            else done = 1

12.1-4

Give recursive algorithms that perform preorder and postorder tree walks in $\Theta(n)$ time on a tree of $n$ nodes.

1
2
3
4
5
PREORDER-TREE-WALK(x)
    if x != NIL
        print x.key
        PREORDER-TREE-WALK(x.left)
        PREORDER-TREE-WALK(x.right)

1
2
3
4
5
POSTORDER-TREE-WALK(x)
    if x != NIL
        POSTORDER-TREE-WALK(x.left)
        POSTORDER-TREE-WALK(x.right)
        print x.key

12.1-5

Argue that since sorting $n$ elements takes $\Omega(n\lg n)$ time in the worst case in the comparison model, any comparison-based algorithm for constructing a binary search tree from an arbitrary list of $n$ elements takes $\Omega(n\lg n)$ time in the worst case.

Assume, for the sake of contradiction, that we can construct the binary search tree by comparison-based algorithm using less than $\Omega(n\lg n)$ time, since the inorder tree walk is $\Theta(n)$, then we can get the sorted elements in less than $\Omega(n\lg n)$ time, which contradicts the fact that sorting $n$ elements takes $\Omega(n\lg n)$ time in the worst case.
